PRODUCT DESCRIPTION

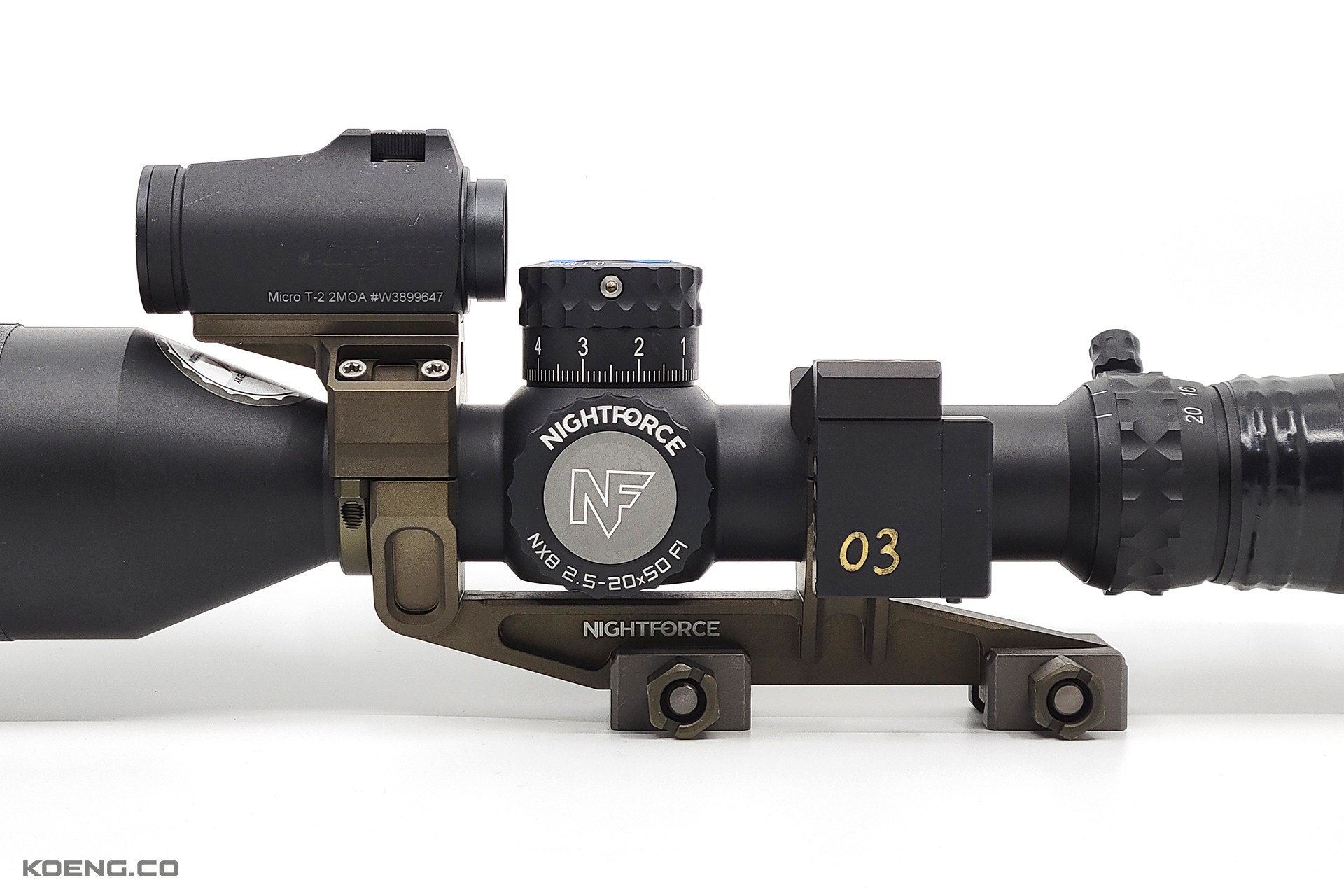

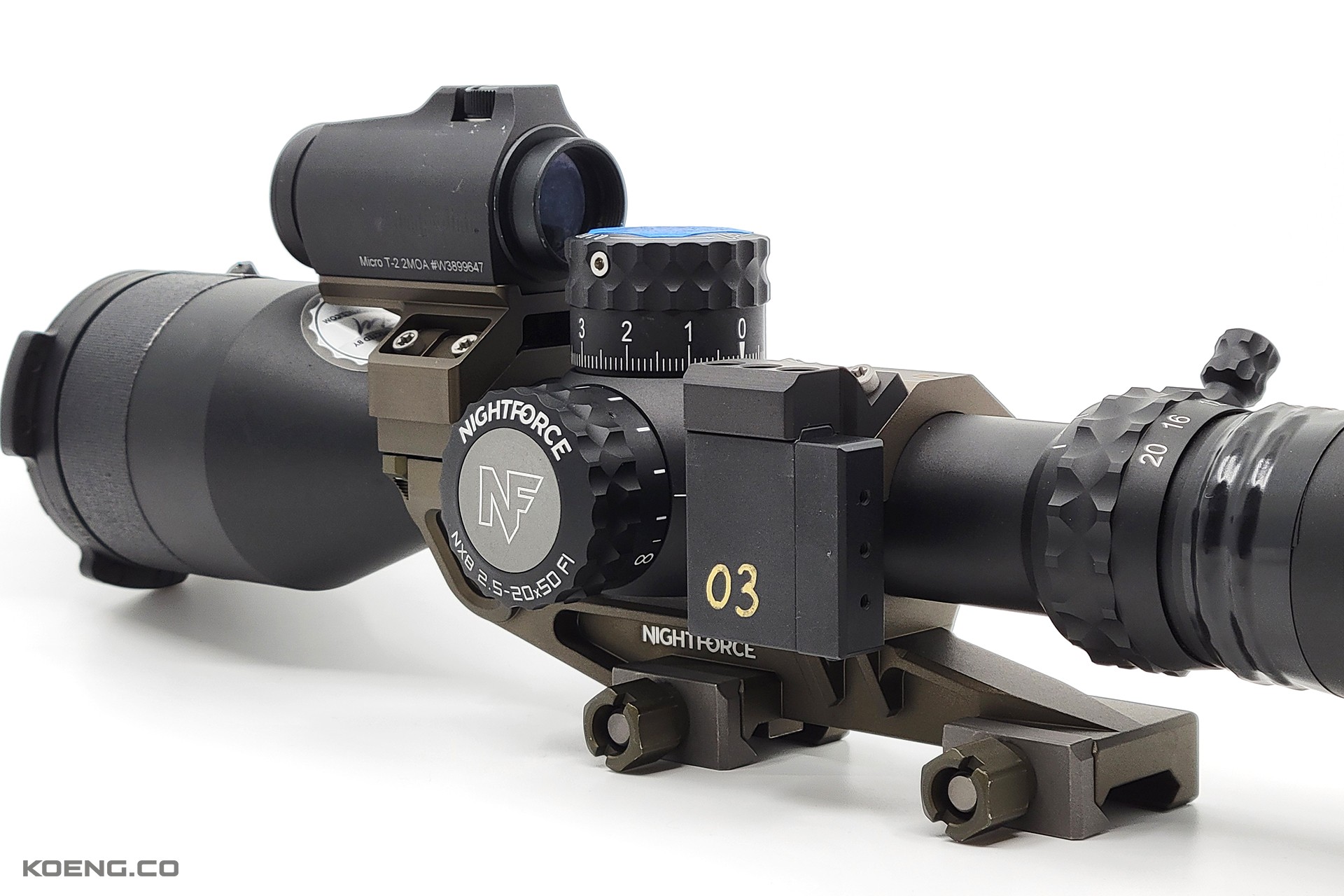

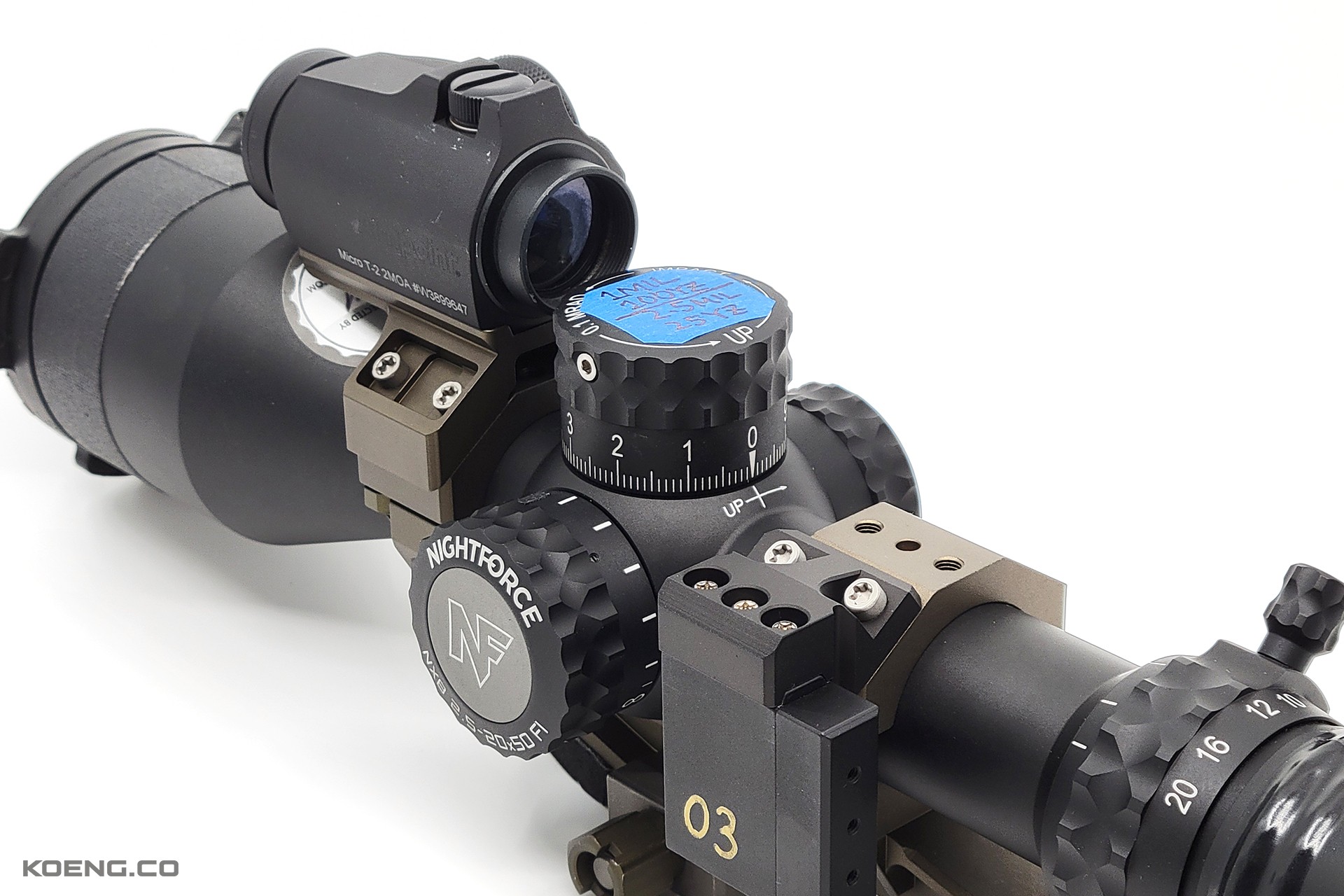

The KOENG AIMPOINT MICRO NIGHTFORCE ADAPTER allows an Aimpoint MICRO-compatible sight to be mounted on a Nightforce RAP-i / X-treme Duty MultiMount Kit, creating an enclosed top-mounted dot / piggyback sight solution for Nightforce UltraMounts / Ultralite Mounts and Rings.  The optical centerline height is approximately 3.3″ to 3.4″ , when mounted on a 1.54″ Nightforce UltraMount with X-treme Duty MultiMount.  This height allows for a more upright posture conducive to positional shooting and passive aiming, and is compatible with Nightforce 1-6x and 1-8x LPVOs, ATACR 4-16x, NX8 2.5-20x, NX6 2-12x, and other similarly dimensioned scopes.  The optical centerline height can be raised with a KOENG AIMPOINT MICRO SPACER (PN 01-020) if additional clearance is needed or desired.

For REV02, we updated both the material and numerous dimensions for added structural rigidity and strength.

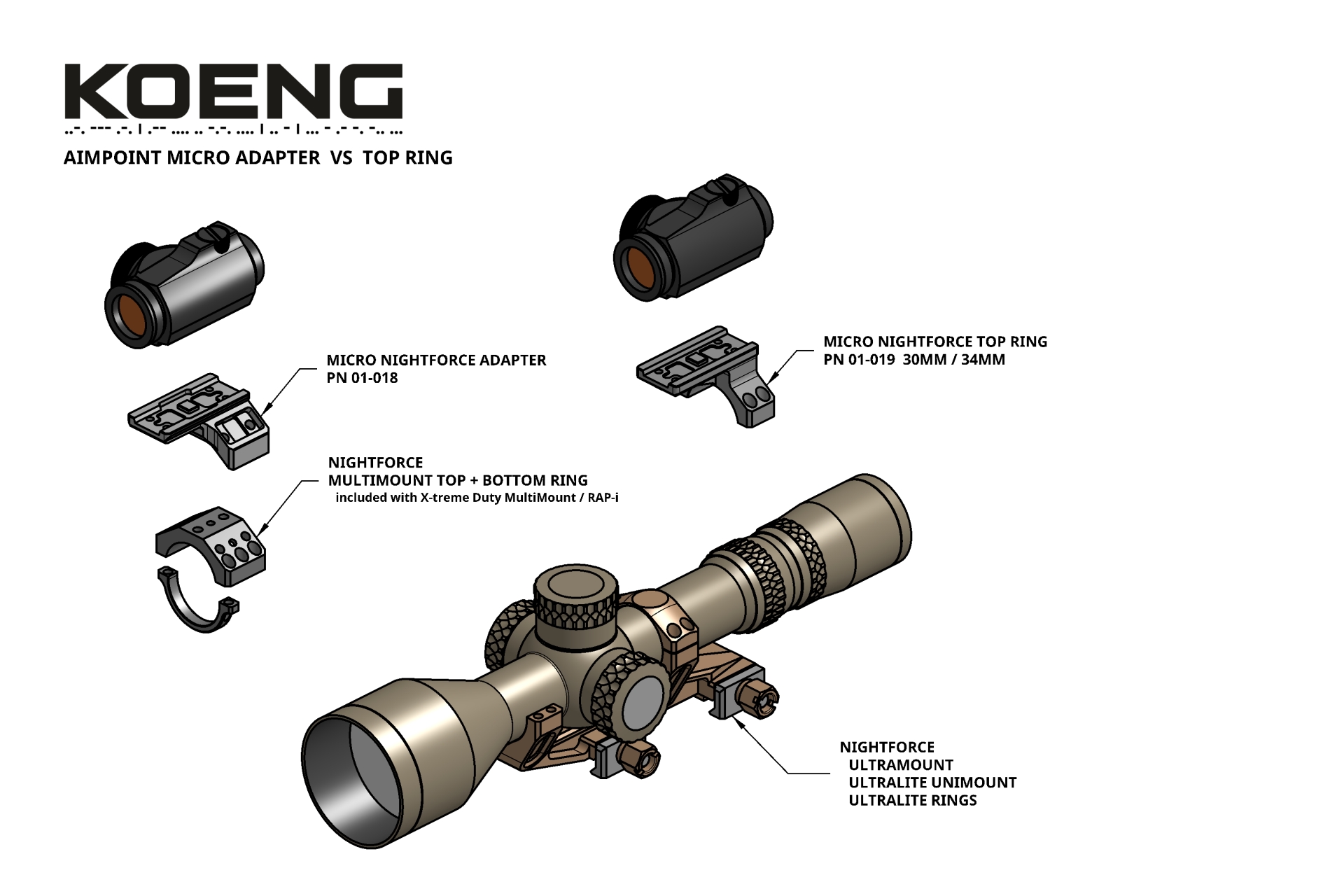

The KOENG AIMPOINT MICRO NIGHTFORCE ADAPTER is tube-diameter neutral and requires a MultiMount top ring and bottom cradle, which are included with the following Nightforce RAP-i / X-treme Duty MultiMount Kits.
– Nightforce A425 (X-treme Duty MultiMount, 30 mm, Black)
– Nightforce A426 (X-treme Duty MultiMount, 34 mm, Black)
– Nightforce A687 (RAP-i, 30 mm, Black)
– Nightforce A686 (RAP-i, 34 mm, Black)
– Nightforce A689 (RAP-i, 30 mm, Dark Earth)
– Nightforce A688 (RAP-i, 34 mm, Dark Earth)

Available in Black or FDE.

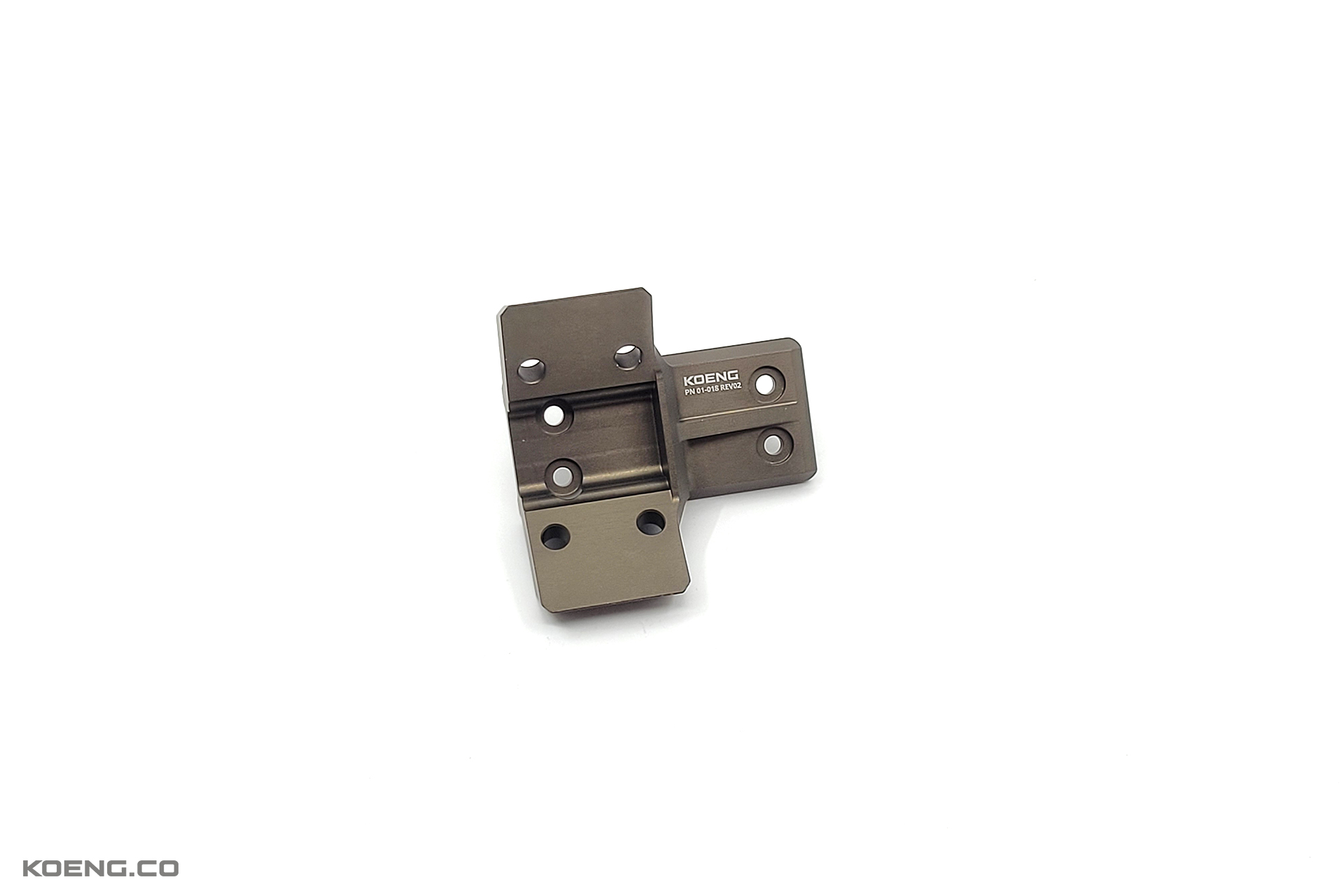

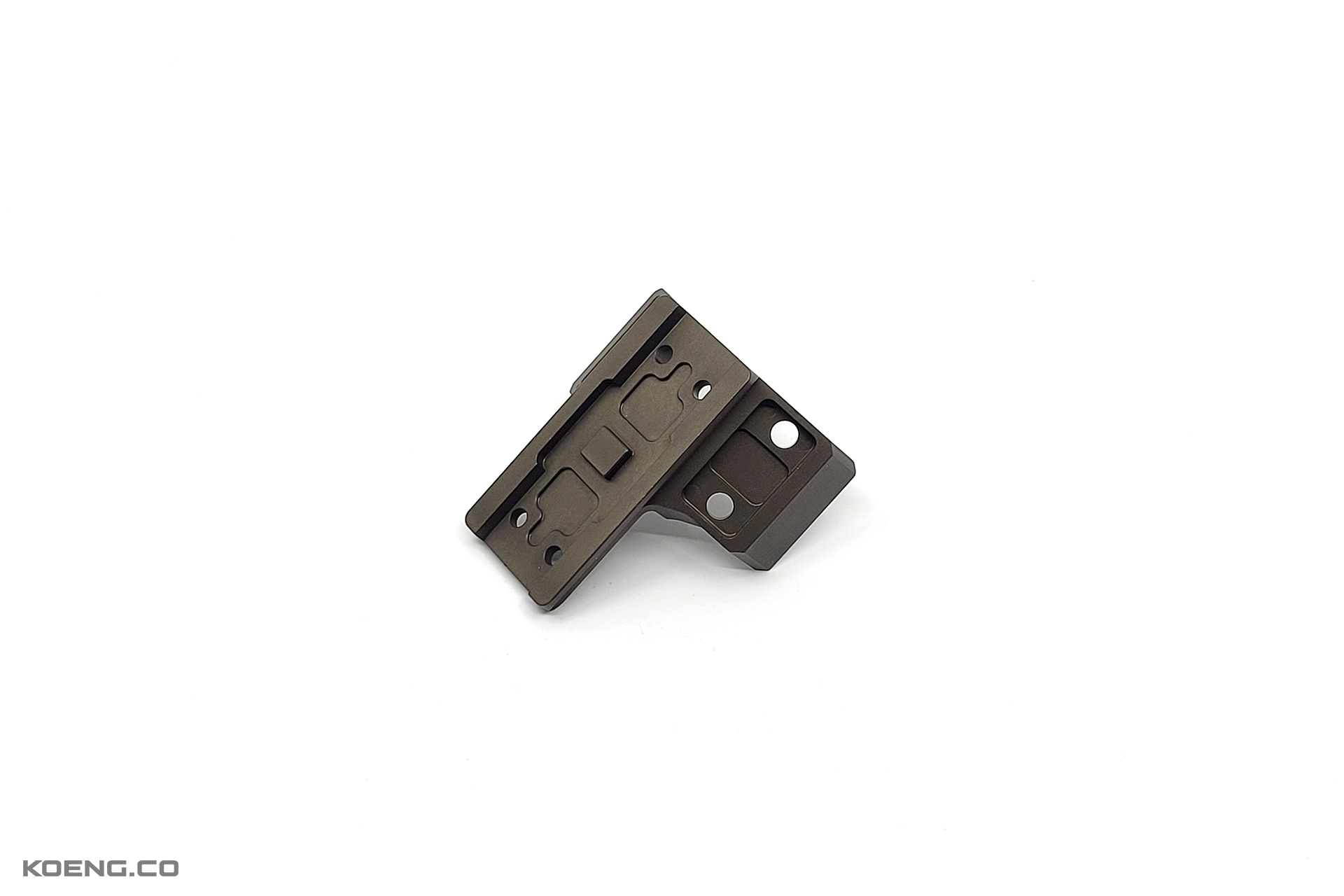

Made from 7075-T6 aluminum Type-3 Hardcoat anodized.

Click Here for Instructions
